NEW 12m & 18m Equalizer air seeders available

Updated: Oct 10, 2023


Equalizer is a leader in the design, manufacturing, and global distribution of quality precision seeding equipment. Equalizer has produced world-class seeding machines for over 20 years, specialising in larger broadacre equipment.

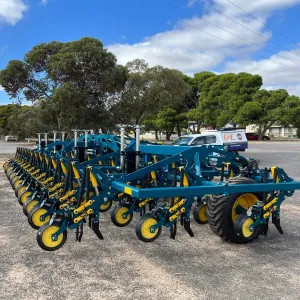

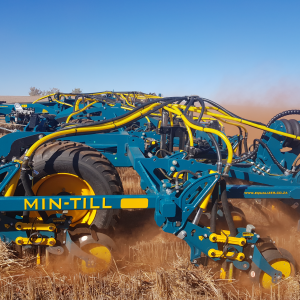

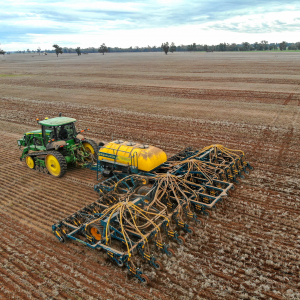

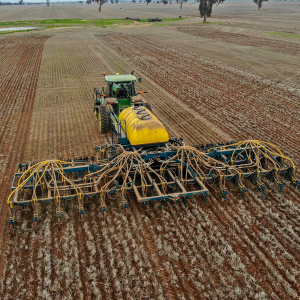

Equalizer Tine Seeder

The Equalizer Tine Seeder has been tested and proven in Australia’s tough sowing conditions. There are a variety of options to suit your specific soil needs to ensure accurate seed depth and fertiliser placement. There’s an Equalizer Tine Seeder for every farming operation!


Tine Seeder Frame

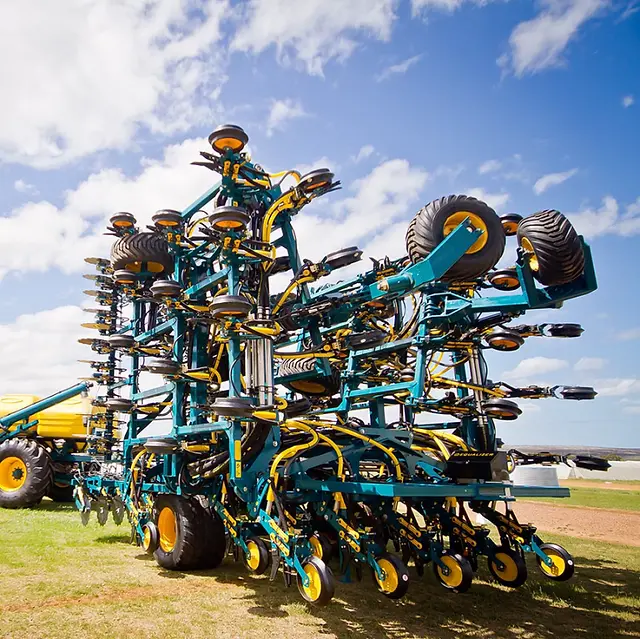

The Equalizer Tine Seeder bar is available in 9m, 12m, 15m, 18m & 24m seeder bar widths with 273mm or 300mm tine spacing. The bars have Domex steel throughout tine units and a 10mm thick frame. Transport is simple and safe with hydraulic folding wings in either 3 or 5 section fold depending on bar width.

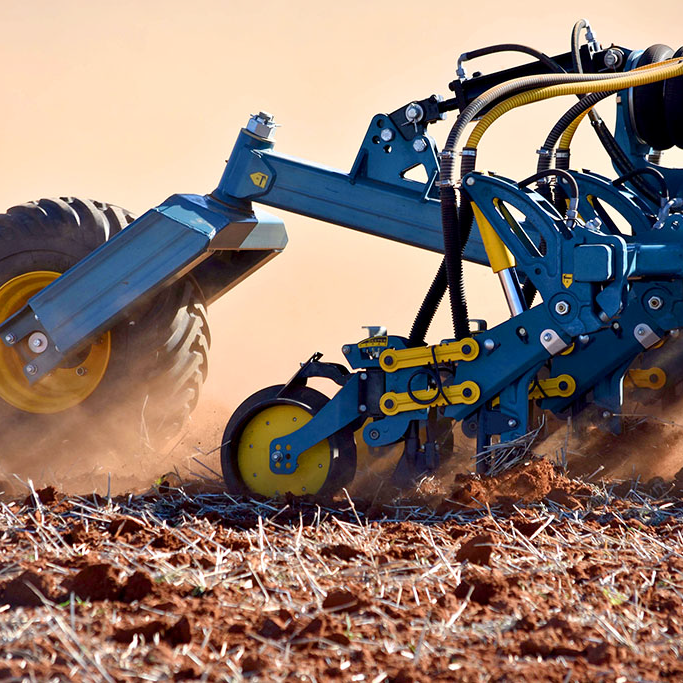

Hydraulic Break Out Tines


The Tine Seeder Bar includes a semi-independent break away on the tines whereby tines can clear small obstacles without changing the seed depth or press wheel downforce. When a larger obstacle is encountered, the entire assembly will trip to avoid damage, with breakout force user adjustable as required.


Seed Placement


Fertiliser and seed placement operate between two semi-independent parts of the unit. The granular fertiliser tube is placed behind the knife and positions the fertiliser below the seed bed at a depth of 150mm. Liquid fertiliser application is also an option.


Equalizer have developed a unique system to allow the operator to make finite adjustments in seed depth, all at the touch of the spring loaded, depth adjustment clip offering 9 settings with minimal to no tools.


A Variety of Options


The Tine Seeder bar is available with a variety of options including single or double chute seeding boots, 4 tine knife points, 2 press wheel alternatives. Download the product brochure for more details.



Equalizer Tine Seeder Product Specifications


Tine Seeder 9000V-15000V5

Tine Seeder 15000VX – 24000VX
